Training a Brain Dynamics Model

@Chaoming Wang

In recent years, we saw the revolution that training a dynamical system from data or tasks has provided important insights to understand brain functions. To support this, BrainPy provides various interfaces to help users train dynamical systems.

import brainpy as bp
import brainpy.math as bm
import brainpy_datasets as bd
import matplotlib.pyplot as plt

bm.enable_x64()

bm.set_platform('cpu')

An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.

bp.__version__

'2.8.0'

Training a reservoir network model

For an echo state network, we have three components: an input node (“I”), a reservoir node (“R”) for dimension expansion, and an output node (“O”) for linear readout.

(Gauthier, et. al., Nature Communications, 2021) has proposed a next generation reservoir computing (NG-RC) model by using nonlinear vector autoregression (NVAR).

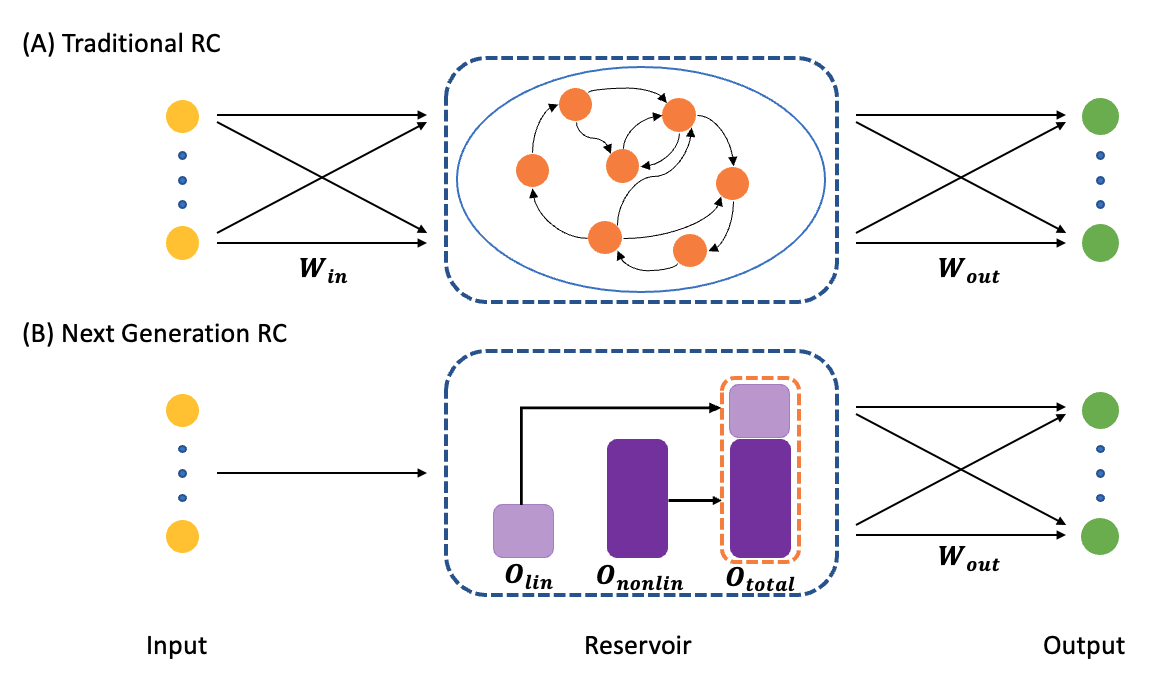

The difference between the two models is illustrated in the following figure.

(A) A traditional RC processes time-series data using an artificial recurrent neural network. (B) The NG-RC performs a forecast using a linear weight of time-delay states of the time series data and nonlinear functionals of this data.

Here, let’s implement a next generation reservoir model to predict the chaotic time series, named as Lorenz attractor. Particularly, we expect the network has the ability to predict \(P(t+l)\) from \(P(t)\), where \(l\) is the length of the prediction ahead.

dt = 0.01
data = bd.chaos.LorenzEq(100, dt=dt)

plt.figure(figsize=(10, 5))
plt.subplot(311)
plt.plot(bm.as_numpy(data.ts), bm.as_numpy(data.xs.flatten()))
plt.ylabel('x')
plt.subplot(312)
plt.plot(bm.as_numpy(data.ts), bm.as_numpy(data.ys.flatten()))
plt.ylabel('y')
plt.subplot(313)
plt.plot(bm.as_numpy(data.ts), bm.as_numpy(data.zs.flatten()))
plt.ylabel('z')

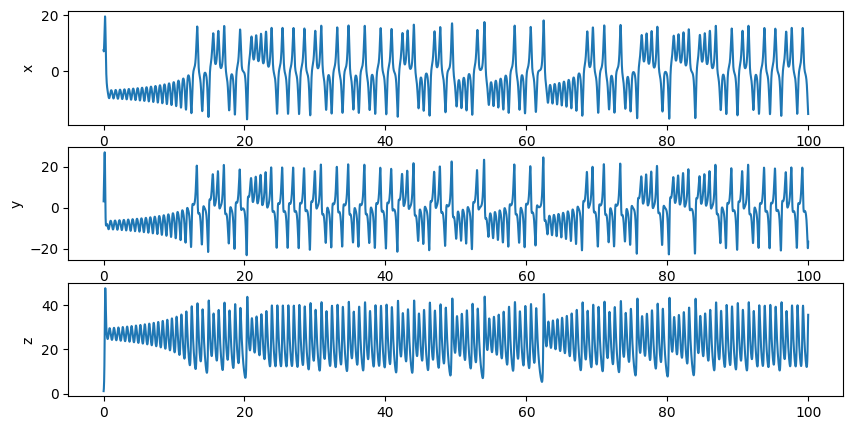

plt.show()

Let’s first create a function to get the data.

def get_subset(data, start, end):
    res = {'x': data.xs[start: end],
           'y': data.ys[start: end],
           'z': data.zs[start: end]}
    res = bm.hstack([res['x'], res['y'], res['z']])
    return res.reshape((1, ) + res.shape)

To accomplish this task, we implement a next-generation reservoir model of 4 delay history information with stride of 5, and their quadratic polynomial monomials, same as (Gauthier, et. al., Nature Communications, 2021).

class NGRC(bp.DynamicalSystem):
  def __init__(self, num_in, num_out):
    super(NGRC, self).__init__()
    self.r = bp.dyn.NVAR(num_in, delay=4, order=2, stride=5)
    self.o = bp.dnn.Dense(self.r.num_out, num_out, mode=bm.training_mode)

  def update(self, x):
    return self.o(self.r(x))

with bm.environment(bm.batching_mode):  # Batching Computing Mode
    model = NGRC(num_in=3, num_out=3)

Moreover, we use Ridge Regression method to train the model.

trainer = bp.RidgeTrainer(model, alpha=1e-6)

We warm-up the network with 20 ms.

warmup_data = get_subset(data, 0, int(20/dt))

outs = trainer.predict(warmup_data)

# outputs should be an array with the shape of
# (num_batch, num_time, num_out)
outs.shape

(1, 2000, 3)

The training data is the time series from 20 ms to 80 ms. We want the network has the ability to forecast 1 time step ahead.

x_train = get_subset(data, int(20/dt), int(80/dt))
y_train = get_subset(data, int(20/dt)+1, int(80/dt)+1)

_ = trainer.fit([x_train, y_train])

Then we test the trained network with the next 20 ms.

x_test = get_subset(data, int(80/dt), int(100/dt)-1)
y_test = get_subset(data, int(80/dt) + 1, int(100/dt))

predictions = trainer.predict(x_test)

bp.losses.mean_squared_error(y_test, predictions)

Array(8.29986958e-10, dtype=float64)

def plot_difference(truths, predictions):
    truths = bm.as_numpy(truths)
    predictions = bm.as_numpy(predictions)

    plt.subplot(311)
    plt.plot(truths[0, :, 0], label='Ground Truth')
    plt.plot(predictions[0, :, 0], label='Prediction')
    plt.ylabel('x')
    plt.legend()
    plt.subplot(312)
    plt.plot(truths[0, :, 1], label='Ground Truth')
    plt.plot(predictions[0, :, 1], label='Prediction')
    plt.ylabel('y')
    plt.legend()
    plt.subplot(313)
    plt.plot(truths[0, :, 2], label='Ground Truth')
    plt.plot(predictions[0, :, 2], label='Prediction')
    plt.ylabel('z')
    plt.legend()
    plt.show()

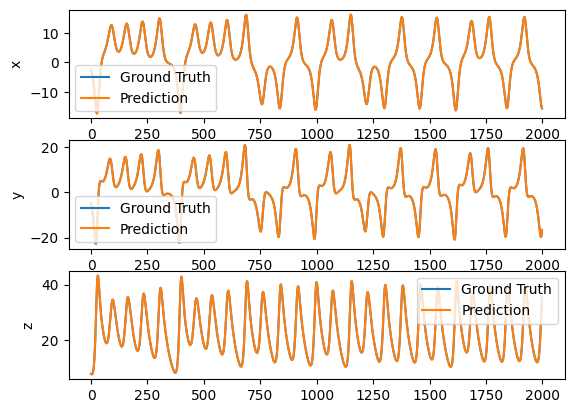

plot_difference(y_test, predictions)

We can make the task harder to forecast 10 time step ahead.

warmup_data = get_subset(data, 0, int(20/dt))
outs = trainer.predict(warmup_data)

x_train = get_subset(data, int(20/dt), int(80/dt))
y_train = get_subset(data, int(20/dt)+10, int(80/dt)+10)
trainer.fit([x_train, y_train])

x_test = get_subset(data, int(80/dt), int(100/dt)-10)
y_test = get_subset(data, int(80/dt) + 10, int(100/dt))
predictions = trainer.predict(x_test)

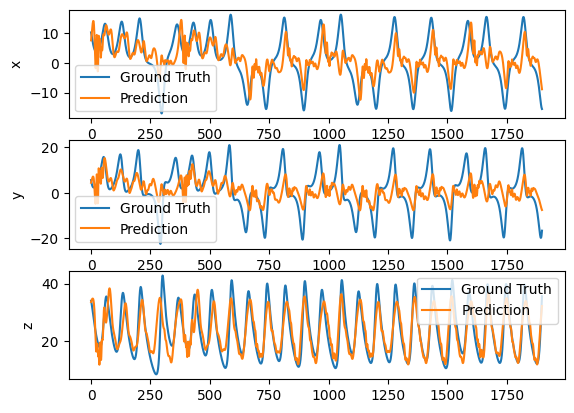

plot_difference(y_test, predictions)

Or forecast 100 time step ahead.

warmup_data = get_subset(data, 0, int(20/dt))
_ = trainer.predict(warmup_data)

x_train = get_subset(data, int(20/dt), int(80/dt))
y_train = get_subset(data, int(20/dt)+100, int(80/dt)+100)
trainer.fit([x_train, y_train])

x_test = get_subset(data, int(80/dt), int(100/dt)-100)
y_test = get_subset(data, int(80/dt) + 100, int(100/dt))
predictions = trainer.predict(x_test)

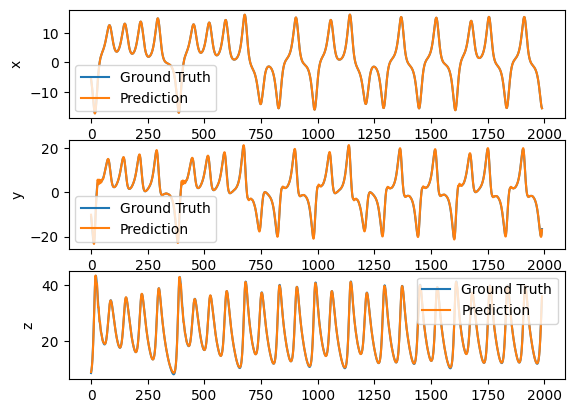

plot_difference(y_test, predictions)

As you see, forecasting larger time step makes the learning more difficult.

Training an artificial recurrent network

In recent years, artificial recurrent neural networks trained with back propagation through time (BPTT) have been a useful tool to study the network mechanism of brain functions. To support training networks with BPTT, BrainPy provides brainpy.train.BPTT interface.

Here, we demonstrate how to train an artificial recurrent neural network by using a white noise integration task. In this task, we want our trained RNN model has the ability to integrate white noise. For example, if we have a time series of noise data,

noises = bm.random.normal(0, 0.2, size=10)

plt.figure(figsize=(8, 2))
plt.plot(noises.flatten())
plt.show()

Now, we want to get a model which can integrate the noise bm.cumsum(noises) * dt:

dt = 0.1
integrals = bm.cumsum(noises) * dt

plt.figure(figsize=(8, 2))
plt.plot(integrals.flatten())
plt.show()

Here, we first define a task which generates the input data and the target integration results.

from functools import partial

dt = 0.04
num_step = int(1.0 / dt)
num_batch = 128


@bm.jit
def build_inputs_and_targets(mean=0.025, scale=0.01):
  # Create the white noise input
  sample = bm.random.normal(size=(num_batch, 1, 1))
  bias = mean * 2.0 * (sample - 0.5)
  samples = bm.random.normal(size=(num_batch, num_step, 1))
  noise_t = scale / dt ** 0.5 * samples
  inputs = bias + noise_t
  targets = bm.cumsum(inputs, axis=1)
  return inputs, targets


def train_data():
  for _ in range(100):
    yield build_inputs_and_targets()

Then, we create and initialize the model. Note here we need the model train its initial state, so we need set state_trainable=True for the used VanillaRNN instance.

class RNN(bp.DynamicalSystem):
  def __init__(self, num_in, num_hidden):
    super(RNN, self).__init__()
    self.rnn = bp.dyn.RNNCell(num_in, num_hidden, train_state=True)
    self.out = bp.dnn.Dense(num_hidden, 1)

  def update(self, x):
    return self.out(self.rnn(x))


with bm.training_environment():
    model = RNN(1, 100)

brainpy.nn.BPTT trainer receives a loss function setting, and an optimizer setting. Loss function can be selected from the brainpy.losses module, or it can be a callable function receives (predictions, targets) argument. Optimizer setting must be an instance of brainpy.optim.Optimizer.

Here we define a loss function which use Mean Squared Error (MSE) to measure the error between the targets and the predictions. We also apply a L2 regularization.

# define loss function
def loss(predictions, targets, l2_reg=2e-4):
    mse = bp.losses.mean_squared_error(predictions, targets)
    l2 = l2_reg * bp.losses.l2_norm(model.train_vars().unique().dict()) ** 2
    return mse + l2

# define optimizer
lr = bp.optim.ExponentialDecay(lr=0.025, decay_steps=1, decay_rate=0.99975)
opt = bp.optim.Adam(lr=lr, eps=1e-1)

/mnt/d/codes/projects/BrainPy/.claude/worktrees/docs-nb-gpu/brainpy/optim/scheduler.py:376: UserWarning: ExponentialDecay is abandoned, please use ExponentialDecayLR insteadly.
  warnings.warn("ExponentialDecay is abandoned, please use ExponentialDecayLR insteadly.")

# create a trainer
trainer = bp.BPTT(model, loss_fun=loss, optimizer=opt)

# train the model
trainer.fit(train_data, num_epoch=30)

Train 0 epoch, use 2.8075 s, loss 0.39516122931127456

Train 1 epoch, use 2.2011 s, loss 0.04101776398339063

Train 2 epoch, use 2.2544 s, loss 0.03708362920752921

Train 3 epoch, use 2.2993 s, loss 0.02482865938037081

Train 4 epoch, use 2.2207 s, loss 0.021341254750841022

Train 5 epoch, use 2.2291 s, loss 0.021015696560156963

Train 6 epoch, use 2.2459 s, loss 0.020753950811780185

Train 7 epoch, use 2.3350 s, loss 0.020528248156331454

Train 8 epoch, use 2.2616 s, loss 0.02030169084866186

Train 9 epoch, use 2.2590 s, loss 0.02019816689116621

Train 10 epoch, use 2.2696 s, loss 0.045358583182389826

Train 11 epoch, use 2.2670 s, loss 0.021863071976626746

Train 12 epoch, use 2.2784 s, loss 0.019565842394697684

Train 13 epoch, use 2.2578 s, loss 0.01926293854185243

Train 14 epoch, use 2.2725 s, loss 0.01901108352580591

Train 15 epoch, use 2.3015 s, loss 0.018790613916821713

Train 16 epoch, use 2.2936 s, loss 0.018572624380932358

Train 17 epoch, use 2.3054 s, loss 0.018362225657247842

Train 18 epoch, use 2.2707 s, loss 0.01816562902524028

Train 19 epoch, use 2.3196 s, loss 0.017958732890275168

Train 20 epoch, use 2.3084 s, loss 0.017776579227317357

Train 21 epoch, use 2.3248 s, loss 0.01759459585827182

Train 22 epoch, use 2.2945 s, loss 0.017411332340511742

Train 23 epoch, use 2.3368 s, loss 0.017242224811794268

Train 24 epoch, use 2.3392 s, loss 0.01707027871649052

Train 25 epoch, use 2.3135 s, loss 0.016918295356003837

Train 26 epoch, use 2.3059 s, loss 0.01675565172905934

Train 27 epoch, use 2.3193 s, loss 0.01659578783899686

Train 28 epoch, use 2.3561 s, loss 0.016456026138226013

Train 29 epoch, use 2.3538 s, loss 0.016318637580129542

The training losses can be retrieved by .get_hist_metric() function.

plt.figure(figsize=(8, 3))
plt.plot(trainer.get_hist_metric(metric='loss'))
plt.xlabel('Number of Training Step')
plt.ylabel('Training Loss')
plt.show()

Finally, let’s try the trained network, and test whether it can generate the correct integration results.

model.reset(num_batch)
x, y = build_inputs_and_targets()
predicts = trainer.predict(x)

plt.figure(figsize=(8, 2))
plt.plot(bm.as_numpy(y[0]).flatten(), label='Ground Truth')
plt.plot(bm.as_numpy(predicts[0]).flatten(), label='Prediction')
plt.legend()

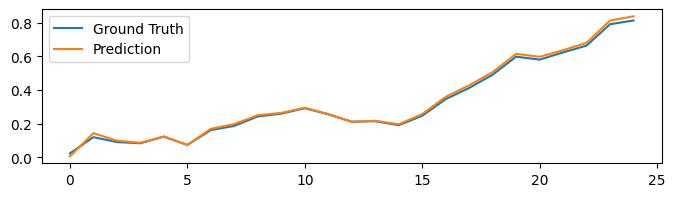

plt.show()

Training a spiking neural network

BrainPy also supports to train spiking neural networks.

In the following, we demonstrate how to use back-propagation algorithms to train spiking neurons with a simple example.

Our model is a simple three layer model:

• an input layer

• a LIF layer

• a readout layer

The synaptic connection between each layer is the Exponenetial synapse model.

bm.set_dt(1.)

class SNN(bp.DynamicalSystem):
  def __init__(self, num_in, num_rec, num_out):
    super().__init__()

    # parameters
    self.num_in = num_in
    self.num_rec = num_rec
    self.num_out = num_out

    # neuron groups
    self.r = bp.dyn.Lif(num_rec, tau=10., V_reset=0., V_rest=0., V_th=1.)
    self.o = bp.dyn.Integrator(num_out, tau=5.)

    # synapse: i->r
    self.i2r = bp.Sequential(
        comm=bp.dnn.Linear(num_in, num_rec, W_initializer=bp.init.KaimingNormal(scale=20.)),
        syn=bp.dyn.Expon(num_rec, tau=10.),
    )

    # synapse: r->o
    self.r2o = bp.Sequential(
        comm=bp.dnn.Linear(num_rec, num_out, W_initializer=bp.init.KaimingNormal(scale=20.)),
        syn=bp.dyn.Expon(num_out, tau=10.),
    )

  def update(self, spike):
    return spike >> self.i2r >> self.r >> self.r2o >> self.o

num_in = 100
num_rec = 10

with bm.training_environment():
    net = SNN(num_in, num_rec, 2)  # out task is a two label classification task

We try to use this simple task to classify a random spiking data into two classes.

num_step = 100
num_sample = 256
freq = 10  # Hz
mask = bm.random.rand(num_step, num_sample, num_in)
x_data = bm.zeros((num_step, num_sample, num_in))
x_data[mask < freq * bm.get_dt() / 1000.] = 1.0
y_data = bm.asarray(bm.random.rand(num_sample) < 0.5, dtype=bm.float_)
indices = bm.arange(num_step)

Same as the training of artificial recurrent neural networks, we use Adam optimizer and cross entropy loss to train the model.

class Trainer:
  def __init__(self, net, opt):
    self.net = net
    self.opt = opt
    opt.register_train_vars(net.train_vars().unique())
    self.f_grad = bm.grad(self.f_loss, grad_vars=self.opt.vars_to_train, return_value=True)

  def f_loss(self):
    self.net.reset(num_sample)
    outs = bm.for_loop(self.net.step_run, (indices, x_data))
    return bp.losses.cross_entropy_loss(bm.max(outs, axis=0), y_data)

  @bm.cls_jit
  def f_train(self):
    grads, loss = self.f_grad()
    self.opt.update(grads)
    return loss

trainer = Trainer(net=net, opt=bp.optim.Adam(lr=4e-3))
for i in range(1000):
  l = trainer.f_train()
  if (i + 1) % 100 == 0:
    print(f'Train {i + 1} steps, loss {l}')

Train 100 steps, loss 0.42693201811636455

Train 200 steps, loss 0.22994354071407147

Train 300 steps, loss 0.11546691706257135

Train 400 steps, loss 0.06466503369992412

Train 500 steps, loss 0.034421270249474493

Train 600 steps, loss 0.022995966510894188

Train 700 steps, loss 0.015640055664577247

Train 800 steps, loss 0.011995669876267299

Train 900 steps, loss 0.008234155585232392

Train 1000 steps, loss 0.006322437437899991

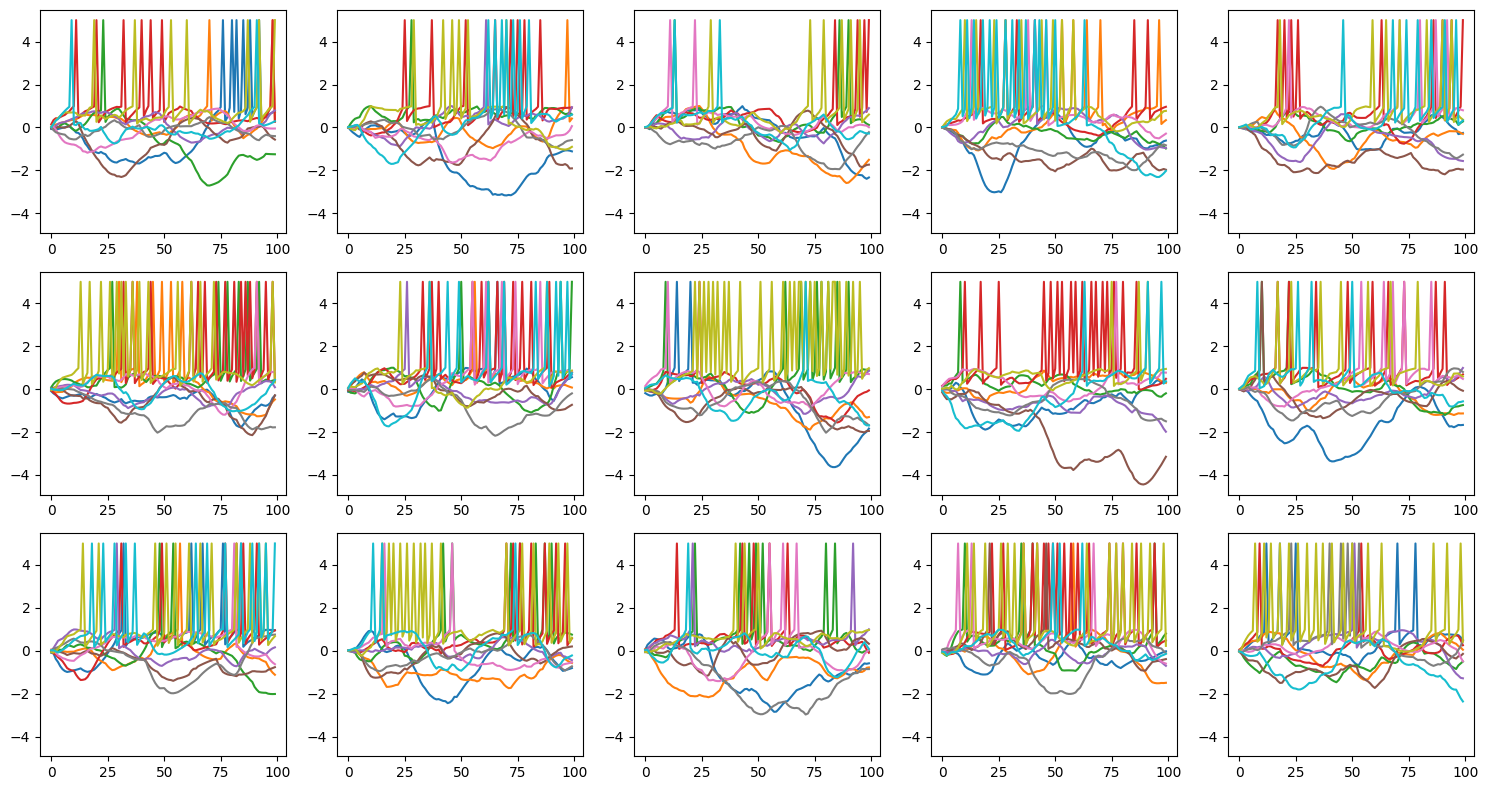

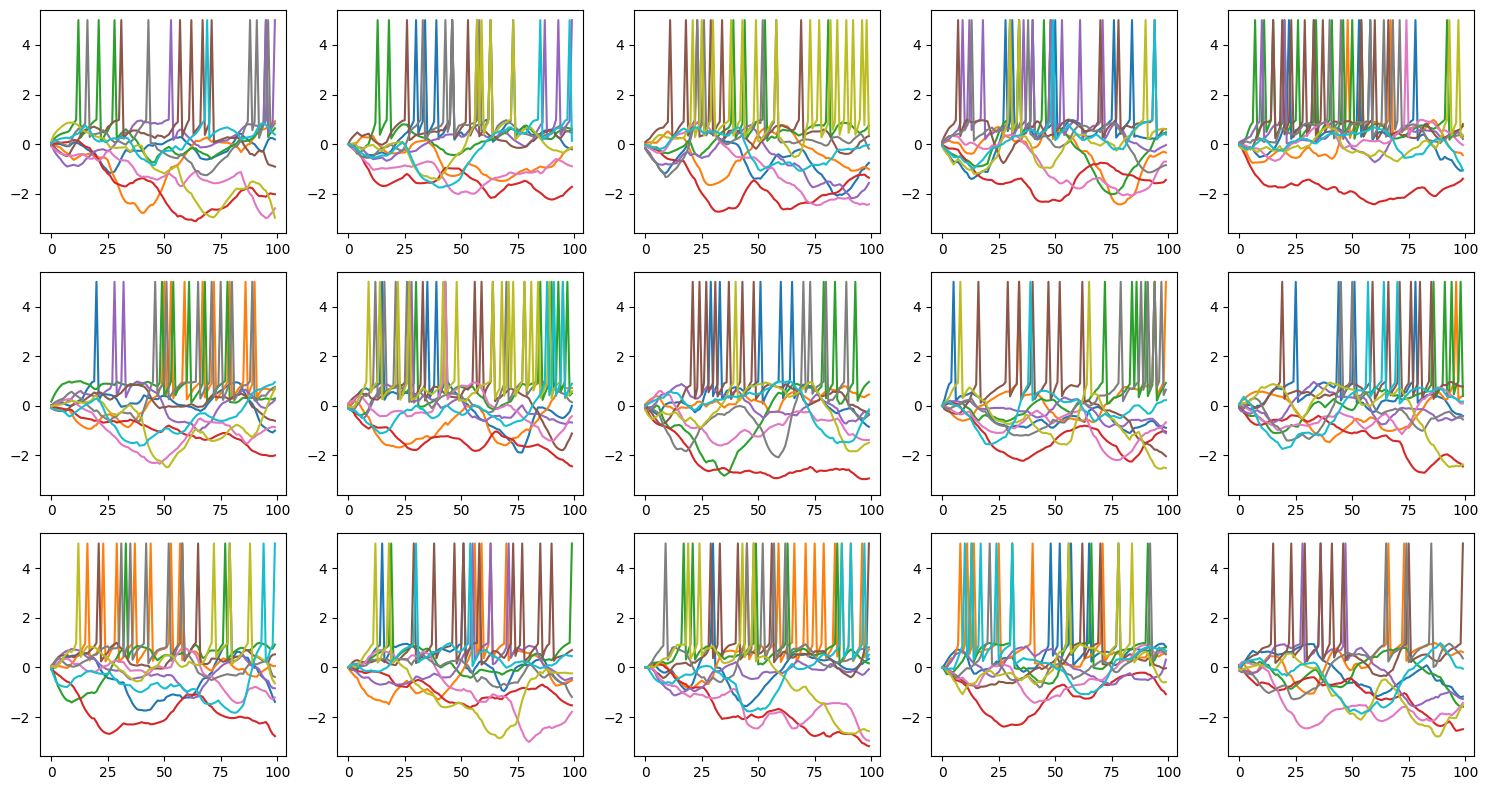

Let’s visualize the trained spiking neurons.

import numpy as np
from matplotlib.gridspec import GridSpec

def plot_voltage_traces(mem, spk=None, dim=(3, 5), spike_height=5):
  plt.figure(figsize=(15, 8))
  gs = GridSpec(*dim)
  mem = 1. * mem
  if spk is not None:
    mem[spk > 0.0] = spike_height
  mem = bm.as_numpy(mem)
  for i in range(np.prod(dim)):
    if i == 0:
      a0 = ax = plt.subplot(gs[i])
    else:
      ax = plt.subplot(gs[i], sharey=a0)
    ax.plot(mem[:, i])
  plt.tight_layout()
  plt.show()

runner = bp.DSRunner(
  net, data_first_axis='T',
  monitors={'r.spike': net.r.spike, 'r.membrane': net.r.V},
)
out = runner.run(inputs=x_data, reset_state=True)
plot_voltage_traces(runner.mon.get('r.membrane'), runner.mon.get('r.spike'))

# the prediction accuracy
m = bm.max(out, axis=0)  # max over time
am = bm.argmax(m, axis=1)  # argmax over output units
acc = bm.mean(y_data == am)  # compare to labels
print("Accuracy %.3f" % acc)

Accuracy 1.000
